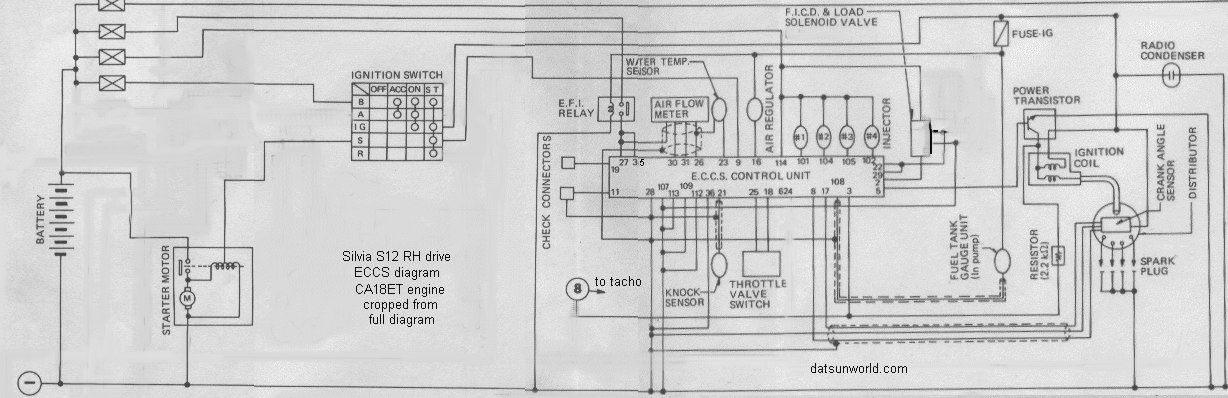

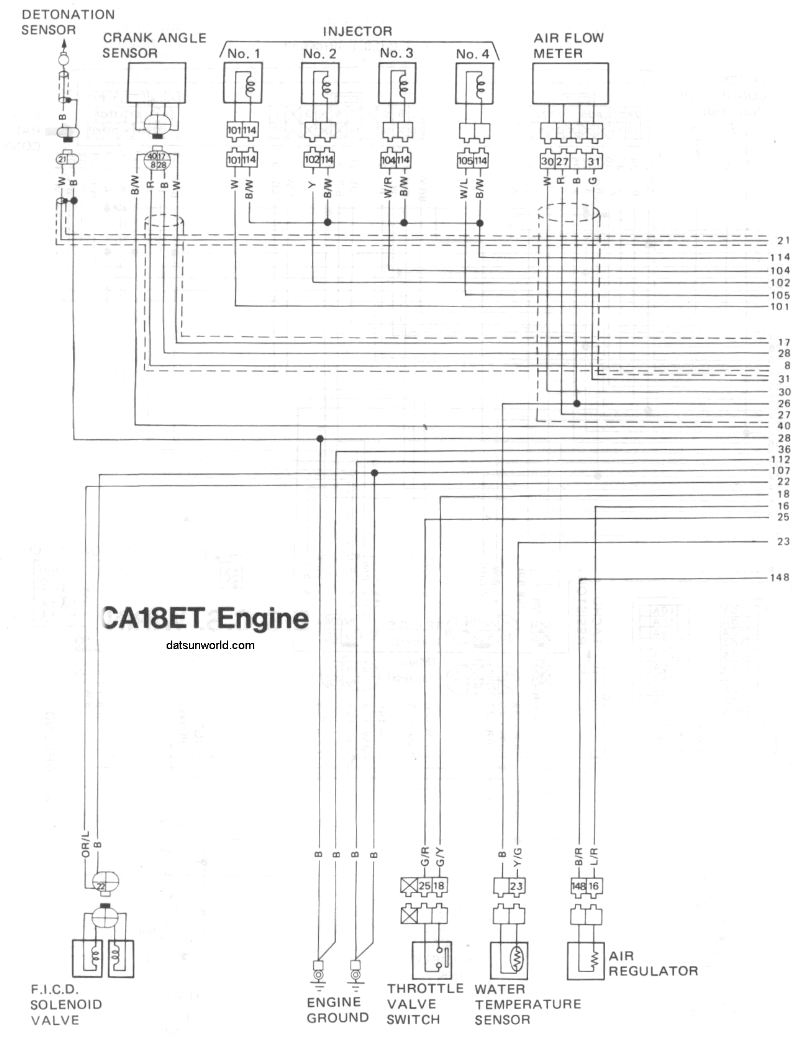

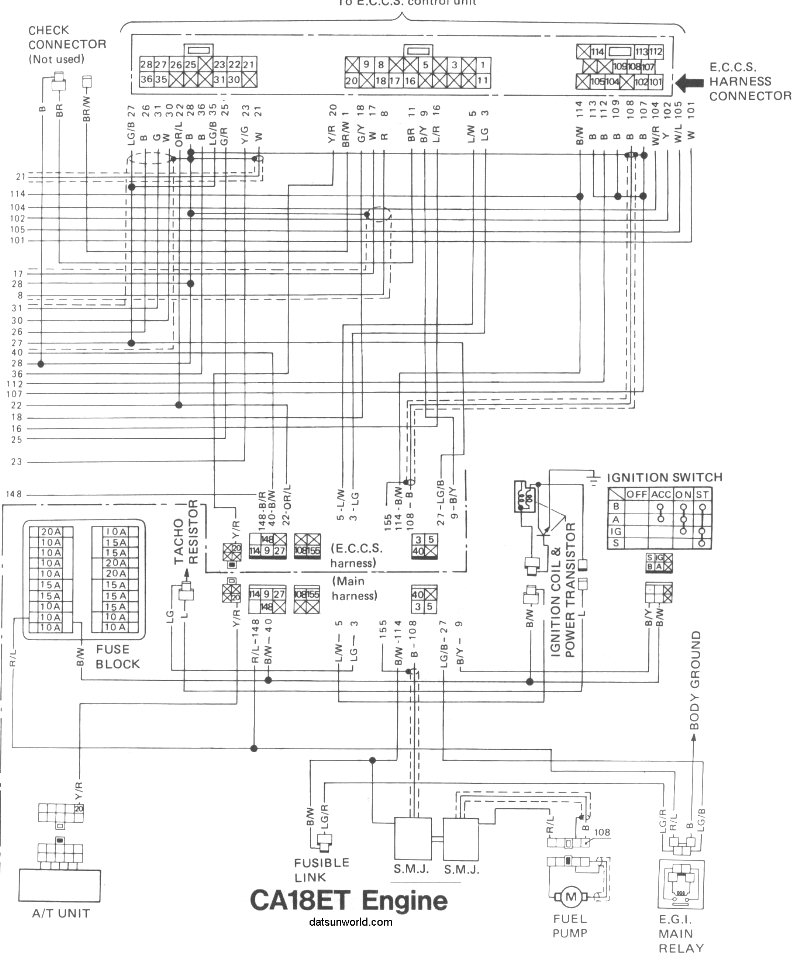

You will need this for installing the CA18ET in another type of vehicle.
I have deleted non engnie related parts of this to simplify it .


Tip! Right Click on any of these three pics and "open in new window" to see them larger

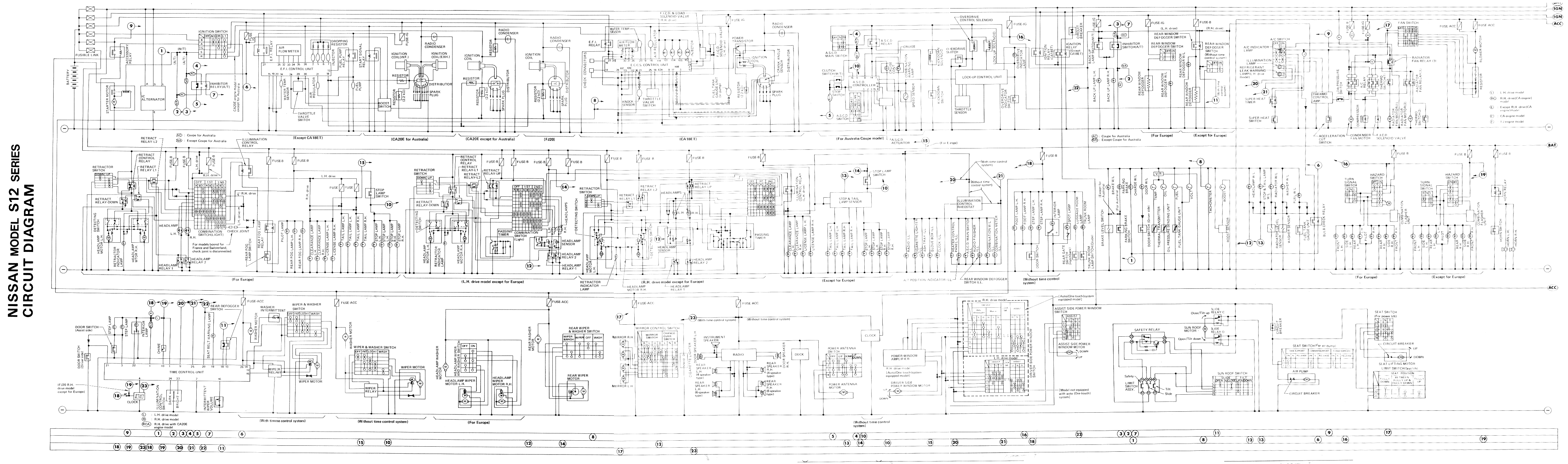

I have also scanned the huge foldout page from the unfeasibly expensive service manual.

Its an 800Kb GIF file of all the scans pasted together! Download this image here
note: This is for RH drive Uk specification model. It covers FJ20, CA18ET and CA20 engines.
